TensorFlow MNIST

The tensorflow_mnist.py example demonstrates the integration of ClearML into code that uses TensorFlow and Keras to train a neural network on the Keras built-in MNIST handwritten digits dataset.

The script builds a TensorFlow Keras model, and trains and tests it with the following:

When the script runs, it creates an experiment named Tensorflow v2 mnist with summaries, which is associated with the examples project.

Scalars#

The loss and accuracy metric scalar plots appear in the experiment's page in the ClearML web UI under RESULTS > SCALARS. Resource utilization plots, which are titled :monitor: machine, also appear in the SCALARS tab.


Hyperparameters#

ClearML automatically logs TensorFlow Definitions. They appear in CONFIGURATIONS > HYPER PARAMETERS > TF_DEFINE.


Console#

All console output appears in RESULTS > CONSOLE.


Artifacts#

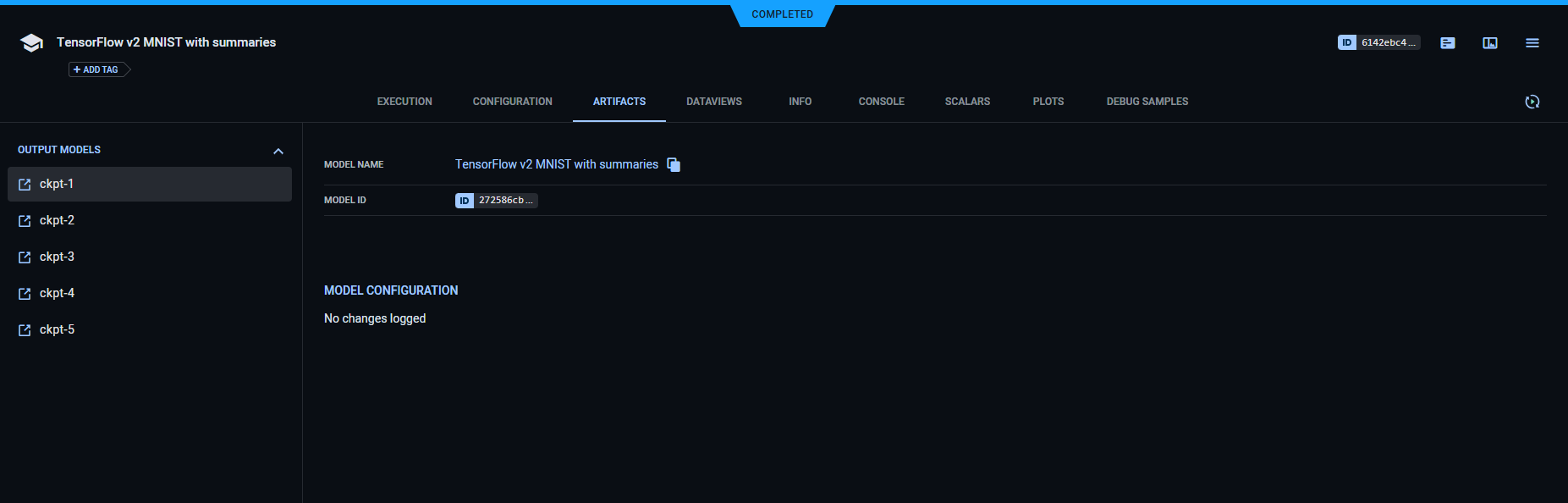

Model artifacts associated with the experiment appear in the info panel of the EXPERIMENTS tab and in the info panel of the MODELS tab.

The experiment info panel shows model tracking, including the model name and design (in this case, no design was stored).


The model info panel contains the model details, including:

  • Model design
  • Label enumeration
  • Model URL
  • Framework
  • Snapshot locations.
