Keras Tuner Integration

Integrate ClearML into code that uses Keras Tuner. By specifying ClearMLTunerLogger (see kerastuner.py) as the Keras Tuner logger, ClearML automatically logs scalars and hyperparameter optimization.

ClearMLTunerLogger#

Take a look at keras_tuner_cifar.py example script, which demonstrates the integration of ClearML in a code that uses Keras Tuner.

The script does the following:

  1. Creates a Hyperband object, which uses Keras Tuner's Hyperband tuner. It finds the best hyperparameters to train a network on a CIFAR10 dataset.
  2. When the Hyperband object is created, instantiates a ClearMLTunerLogger object and assigns it to the Hyperband logger. The ClearMLTunerLogger class provides the required binding for ClearML automatic logging.
tuner = kt.Hyperband(
build_model,
project_name='kt examples',
logger=ClearMLTunerLogger(),
objective='val_accuracy',
max_epochs=10,
hyperband_iterations=6)

When the script runs, it logs:

  • Tabular summary of hyperparameters tested and their metrics by trial ID
  • Scalar plot showing metrics for all runs
  • Summary plot
  • Output model with configuration and snapshot location.

Scalars#

ClearML logs the scalars from training each network. They appear in the project's page in the ClearML web UI, under RESULTS > SCALARS.


Summary of Hyperparameter Optimization#

ClearML automatically logs the parameters of each experiment run in the hyperparameter search. They appear in tabular form in RESULTS > PLOTS.


Artifacts#

ClearML automatically stores the output model. It appears in ARTIFACTS > Output Model.

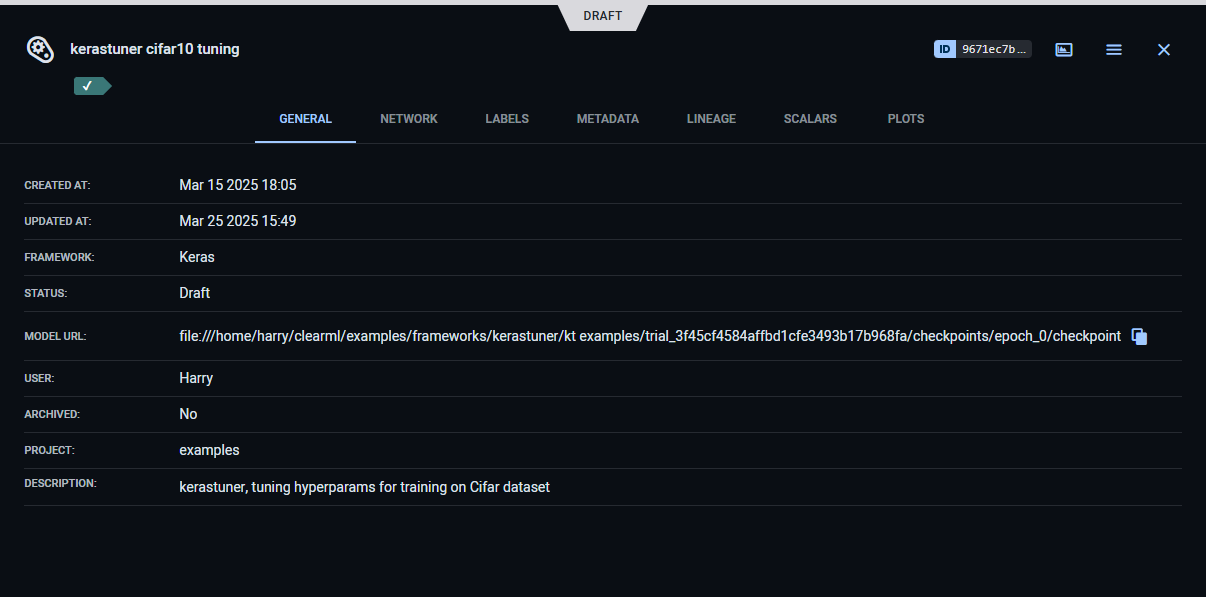

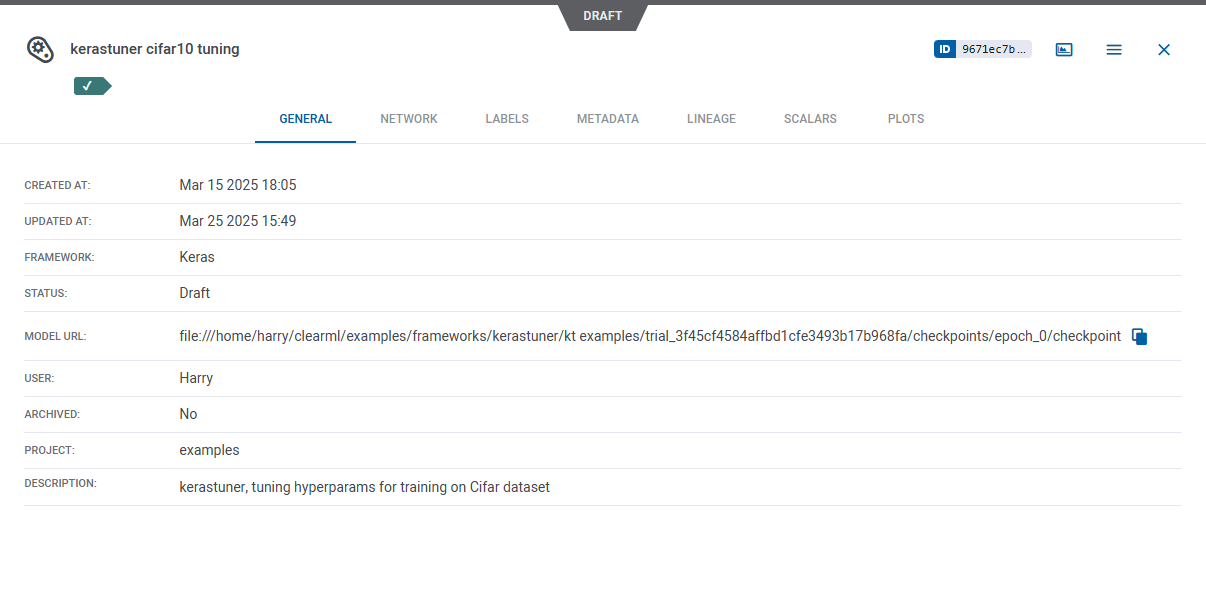

Model details, such as snap locations, appear in the MODELS tab.

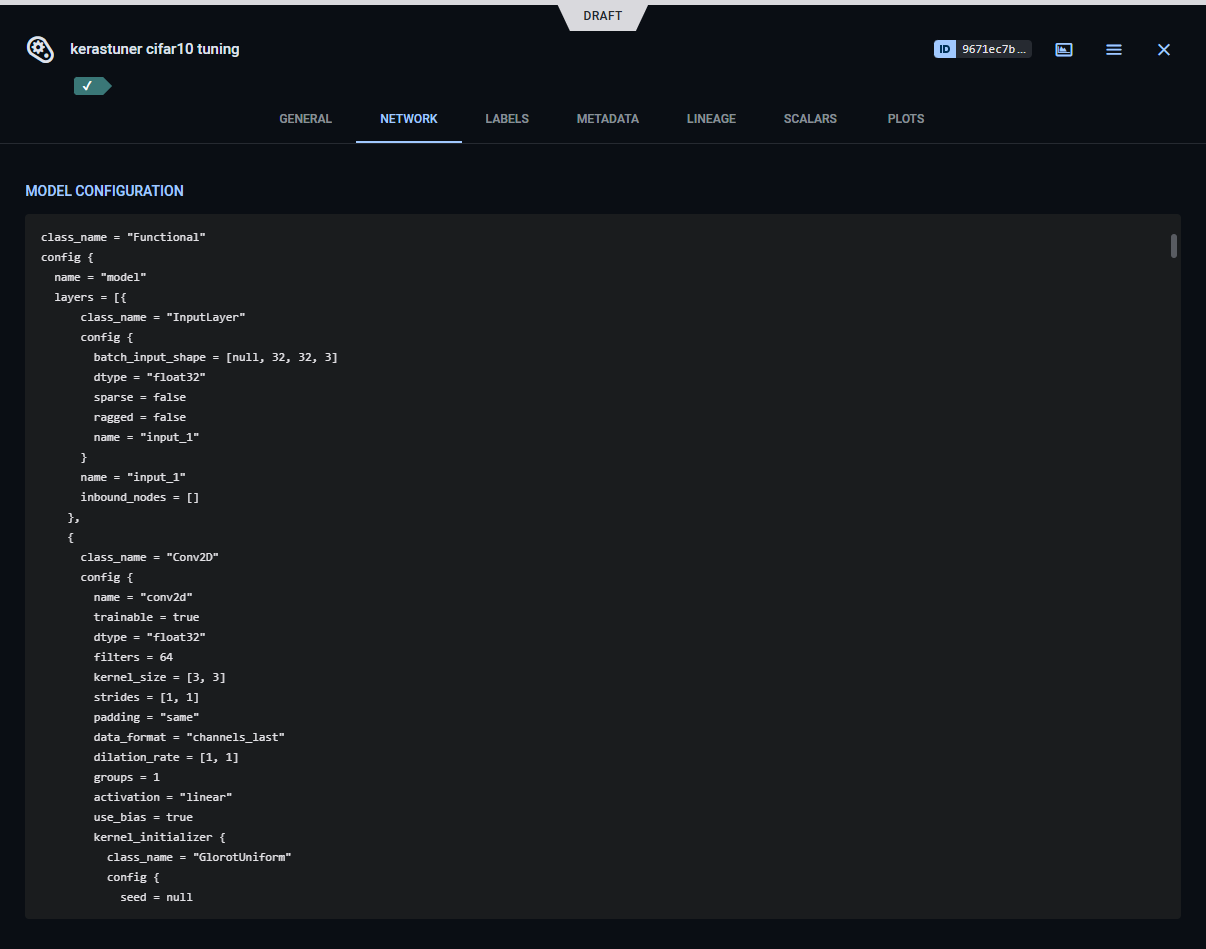

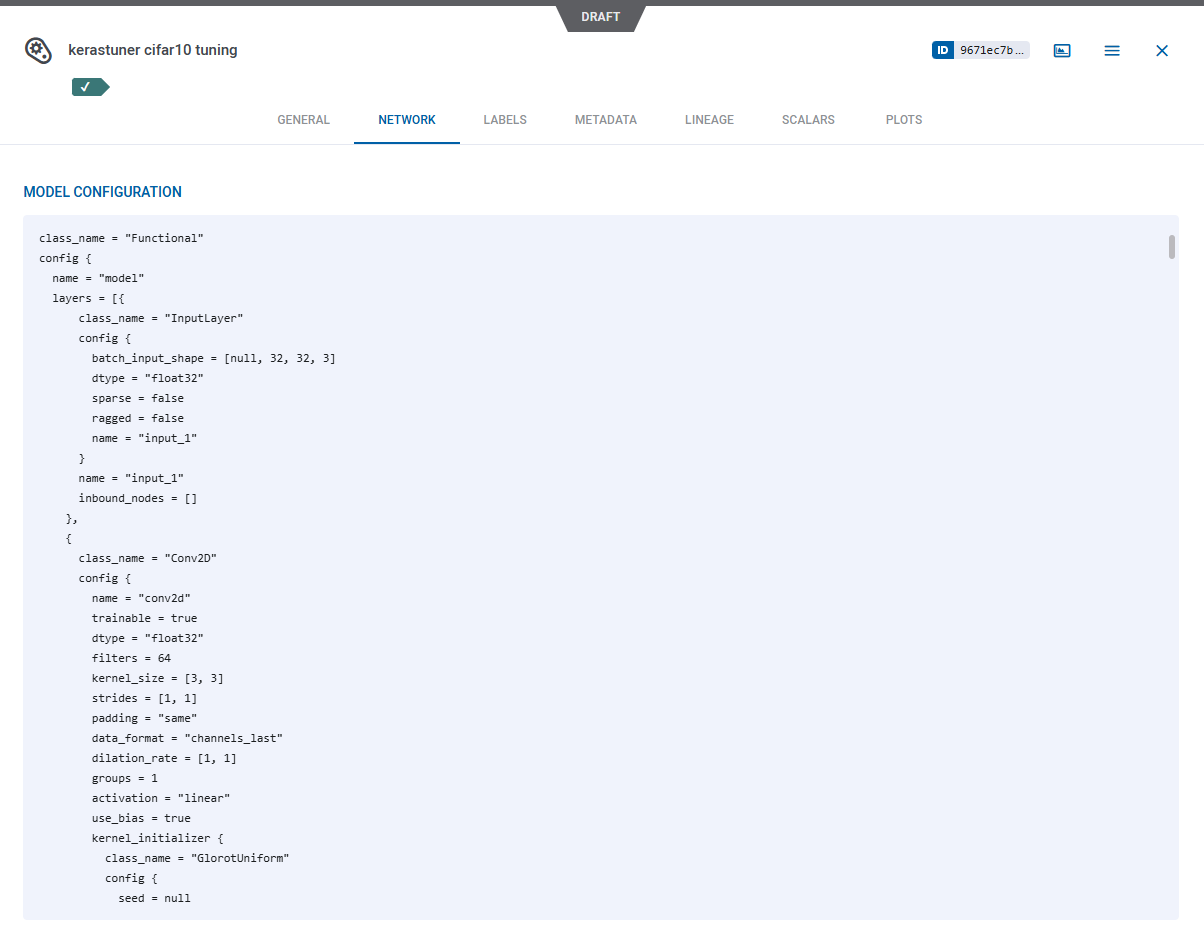

The model configuration is stored with the model.


Configuration Objects#

Hyperparameters#

ClearML automatically logs the TensorFlow Definitions, which appear in RESULTS > CONFIGURATION > HYPER PARAMETERS.


Configuration#

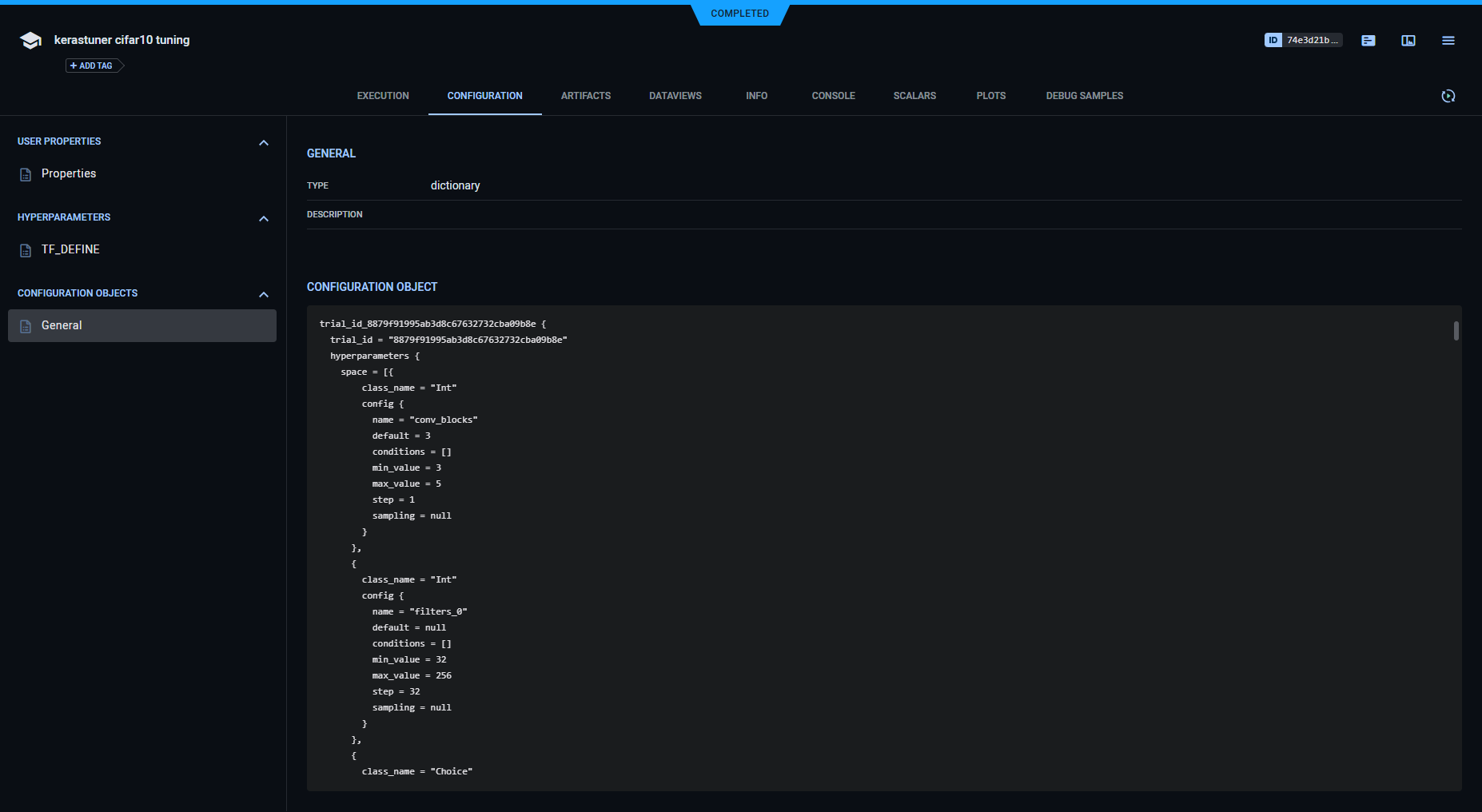

The Task configuration appears in RESULTS > CONFIGURATION > General.
